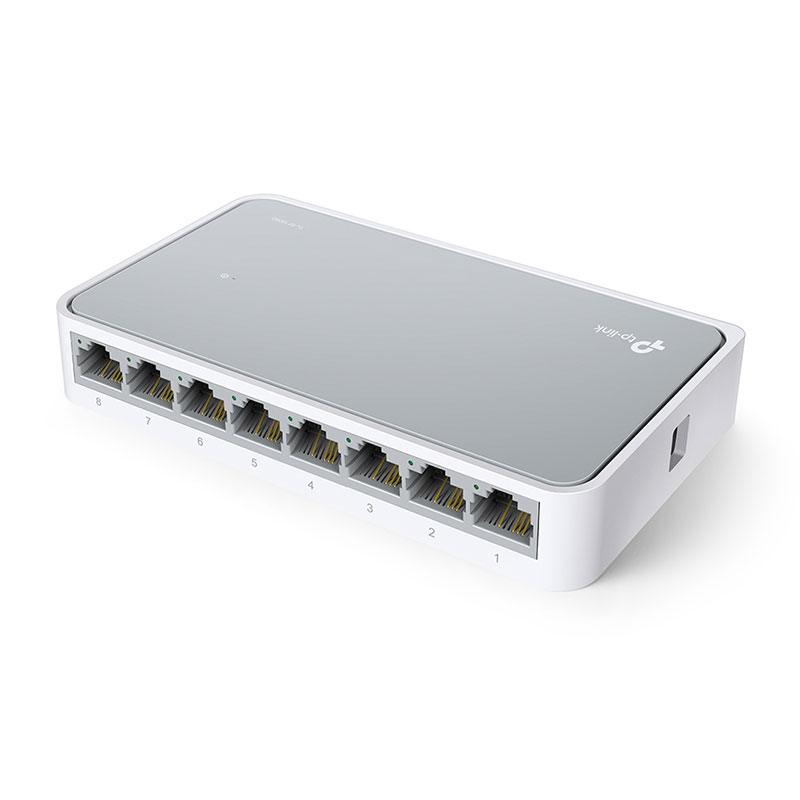

TP-LINK (TL-SF1008D) 8-Port Switch

CODE:

202339

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Interface	8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity	Fanless
External Power Supply	100-240VAC, 50/60Hz (Output: 9VDC / 0.6A)
Buffer Size	768Kb
Data Rates	10/100Mbps at Half Duplex ; 20/200Mbps at Full Duplex
LED Indicator	Power Port network activity (on the network module)
Dimensions ( W x D x H )	5.3 × 3.1 × 0.9 in. (135 × 79 × 23mm)
Max Power Consumption	2W
Max Heat Dissipation	7.0 BTU/h

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD

Interface

8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity

Fanless

External Power Supply

100-240VAC, 50/60Hz
(Output: 9VDC / 0.6A)

Buffer Size

768Kb

Data Rates

10/100Mbps at Half Duplex ;
20/200Mbps at Full Duplex

LED Indicator

Power
Port network activity (on the network module)

Dimensions ( W x D x H )

5.3 × 3.1 × 0.9 in.
(135 × 79 × 23mm)

Max Power Consumption

Max Heat Dissipation

7.0 BTU/h

SOFTWARE FEATURES
Transfer Method	Store and Forward
Advanced Functions	Green Technology 802.3X Flow Control, Back Pressure

SOFTWARE FEATURES

Transfer Method

Store and Forward

Advanced Functions

Green Technology
802.3X Flow Control, Back Pressure

OTHERS
Certification	FCC, RoHS
Package Contents	8-Port 10/100Mbps Desktop Switch Power Adapter User Guide
Environment	Operating Temperature: 0°C~40°C (32°F~104°F); Storage Temperature: -40°C~70°C (-40°F~158°F); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

OTHERS

Certification

FCC, RoHS

Package Contents

8-Port 10/100Mbps Desktop Switch
Power Adapter
User Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40°C~70°C (-40°F~158°F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
